Product Specification

System:

Processor: Intel Atom J1900 processor

System memory: DDR3L SODIMM x1, supports a maximum of 8GB

Network: 2 x GbE RJ45 Intel i211/i210

I/O interface: 1 x USB3.0, 5 x USB2.0, 6 x DB9 COM (2 of which support RS485/RS422), 1 x HDMI, 1 x VGA, 10 x GPIO (custom input/output), 1 x Power Button Support 12V power input, 1 x headphone port, 1 x microphone, 2 x antenna port for WIFI/3G/4G

Storage: 1x MSATA

1x HDD/SSD

Expansion slot: Mini-PCIe x 1 half card, support WIFI Bluetooth, Mini-PCIe x 1 full card (with SIM card), support 3G/4G module, WIFI Bluetooth

System support: Windows? 7/8/10, WES 7/10, LINUX

Other: Support watchdog, one key restore, diskless startup

Power Supply:

Power input: 12V

Structure:

Material: Aluminum

Installation mode: Supports desktop and wall mount

Dimensions: 180 x 120 x 54 mm

Weight: 1.0 Kg

Working environment:

Storage temperature: -30℃ to +70℃ :

Operating temperature: -20℃ to +60℃ :

Storage humidity: 10%~90% @30℃, no condensation

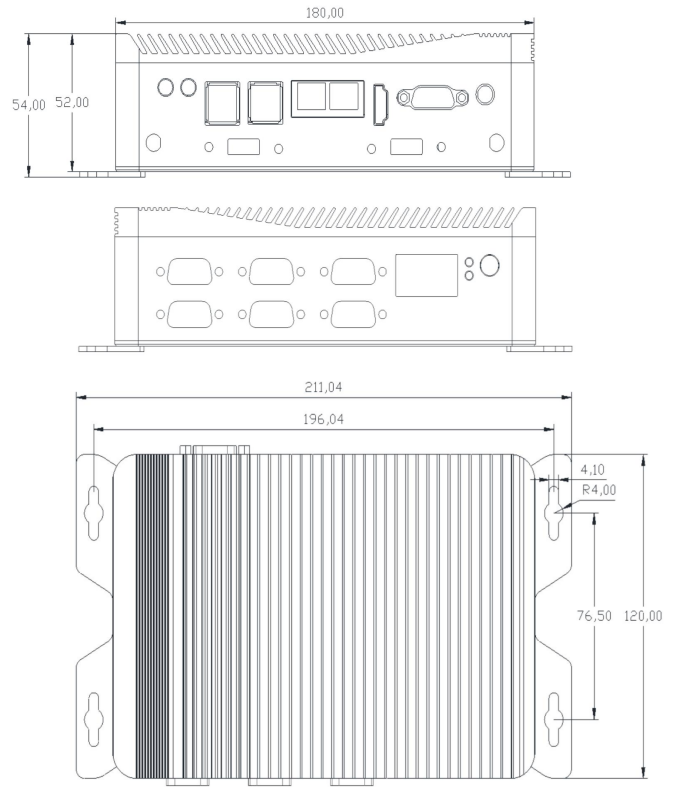

Product Size drawing
