Product Specification

System:

Processor: Intel's 4/5/6/7/8/10 Core i3/i5/i7 CPU is optional

System memory: 4/5 generation ----------DDR3L SODIMM x1, Max. 8GB memory

6/7/8/10 ----DDR4 SODIMM x2, up to 32GB memory

Network: 2 x GbE RJ45 Intel i211/i210, I/O interface: 4 x USB3.0, 2 x USB2.0, 6 x DB9 COM (4 of which support RS485/RS422), 1 x HDMI, 1 x VGA, 1 x PS2 (keyboard and mouse in one), 14 x GPIO (7 inputs, 7 outputs), 1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button, 1 x 3pin Phoenix terminal power base, support 9-36V power input, 1 x headphone port, 1 x microphone, 1 x dip switch, Support ATX/AT boot mode selection, 2 x antenna interface, for WIFI/3G/4G

Storage: 1x MSATA

1x M.2 NVME 2280 (supported by the 6/7/8/10 generation) 1x HDD/SSD

Expansion slot: Mini-PCIe x 1 half card, support WIFI Bluetooth, Mini-PCIe x 1 full card (with SIM card), support 3G/4G module, WIFI Bluetooth, expansion IOx 1, support LPC, USB, PCIE

System support: Windows? 7/8/10, WES 7/10, LINUX

Other: Support watchdog, one key restore, diskless startup

Power Supply:

Power input: 9-36V

Structure:

Material: Aluminum

Installation mode: Supports desktop and wall mount

Dimensions: 249 x 150 x 86 mm

Weight: 2.2 Kg

Working environment:

Storage temperature: -30℃ to +70℃ :

Operating temperature: -20℃ to +60℃ :

Storage humidity: 10%~90% @30℃, no condensation

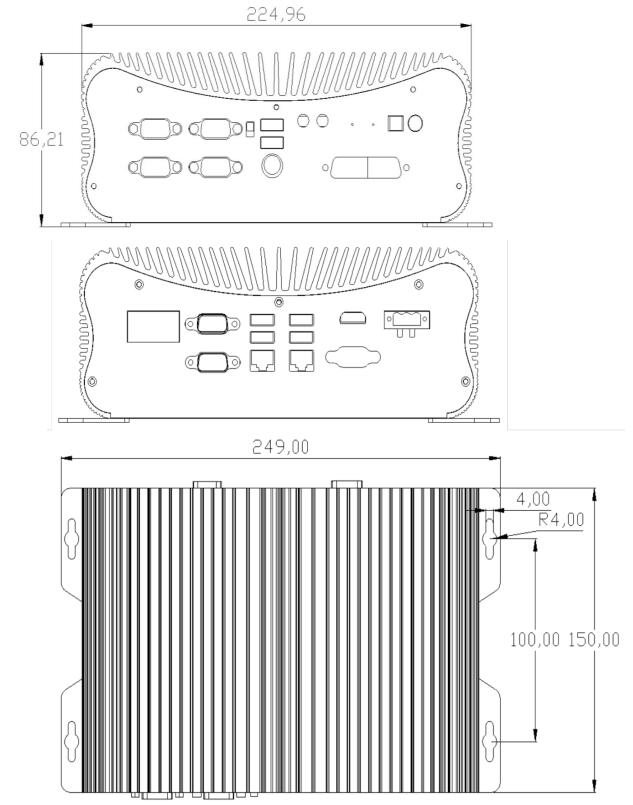

Product Size drawing
