Product Specification

System:

Name: BSTB-6780

Processor: Intel? 6/7/8 Core i3/i5/i7 CPU is optional

System memory: DDR4 SODIMMx2, up to 16GB

Display: HDMI, VGA

Ethernet:

2 x GbE RJ45 Intel? i211-AT

I/O ports: 4 x USB2.0, 4 x USB3.0

2 x DB-9 COM1&COM2, RS-232/422/485

4 x 3-wire RS-232 Phoenix terminal

1 x 8bit GPIO Phoenix terminals

1 x Audio Line-out, 1 x Audio Mic-in

2 x 4Ω 3W power amplifier output (optional)

1 x LVDS (optional)

1 x Power Button, 1 x Reset Button, 1 x Clear CMOS button

1 x Power LED, 1 x HDD LED

1 x Power input

1 x SIM card slot

2 x antenna interface for WIFI/3G/4G

1 x Phoenix terminal Remote switch port

Storage: 1x MSATA

1x HDD/SSD

Expansion slot: Mini-PCIe x 1 full card, onboard SIM card slot, support 3G/4G module Mini-PCIe x 1 half card, support WIFI Bluetooth

Watchdog timer: 1~255 seconds programmable setting

Supported systems: Windows? 7/8/10,WES 7,LINUX

Structure:

Material: Aluminum

Installation mode: Supports desktop and wall mount

Dimensions: 248 x 150 x 83 mm

Weight: TBD

Use environment:

Operating temperature: -20°C ~ 70°C

Storage temperature: -30°C to 70°C

Storage humidity: 95% @40°C, no condensation

Power Supply:

Power input: DC 9~36V wide voltage input

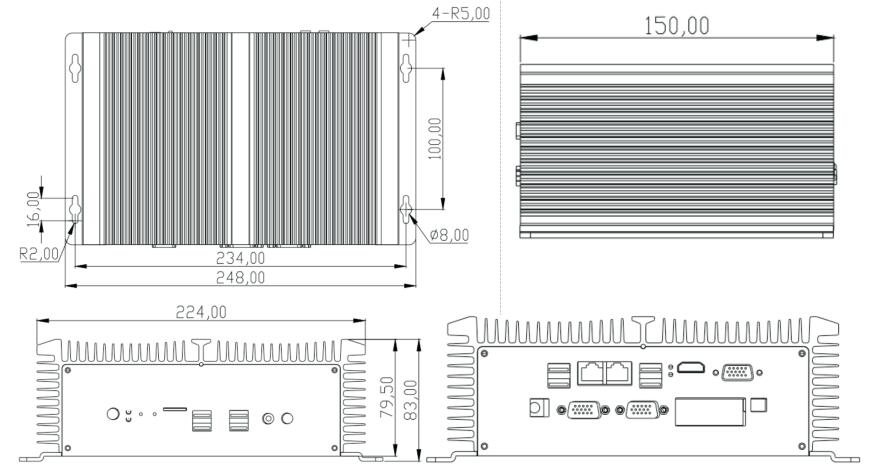

Dimension Drawing
