Product Specification

System:

Processor: Intel 7gen Core i5/i7-HQ CPU is optional

System memory: DDR4 SODIMM x2, supports up to 32GB

Network: 4 x GbE RJ45 Intel i211/i210

Support POE, support 802.3AF(2 to 13W), 802.3AT(2 to 30W), 802.3BT(4 to 30W)

I/O interface:

6 x USB3.0, 2 x USB2.0

6 x DB9 COM (2 of which support RS485/RS422)

1 x HDMI, 1 x VGA, 1 x DP

1 x PS2 (keyboard and mouse in one)

14 x GPIO (7 inputs, 7 outputs)

1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button

1 x 4pin power socket, support 9-36V power input

1 x headphone jack, 1 x microphone

1 x DIP switch, supporting ATX/AT boot mode selection

2 x antenna interface for WIFI/3G/4G

Storage: 1 x MSATA

1 x M.2 NVME 2280

1 x HDD/SSD

Expansion slot: Mini-PCIe x 1 half card/full card (with SIM card), support 3G/4G module, WIFI, Bluetooth

4 x PCI, 1 x PCIEx8, 2 x PCIEx4

System support: Windows 7, Windows 10, WES 7/10, LINUX

Other: Support watchdog, one key restore, diskless startup

Power Supply:

Power input: 9-36V

Structure:

Material: Aluminum

Installation mode: Supports desktop and wall mount

Dimensions: 310 x 203 x 125 mm

Weight: 4.6Kg

Working environment:

Storage temperature: -30℃ to +70℃ :

Operating temperature: -20℃ to +50℃ :

Storage humidity: 10%~90% @30℃, no condensation

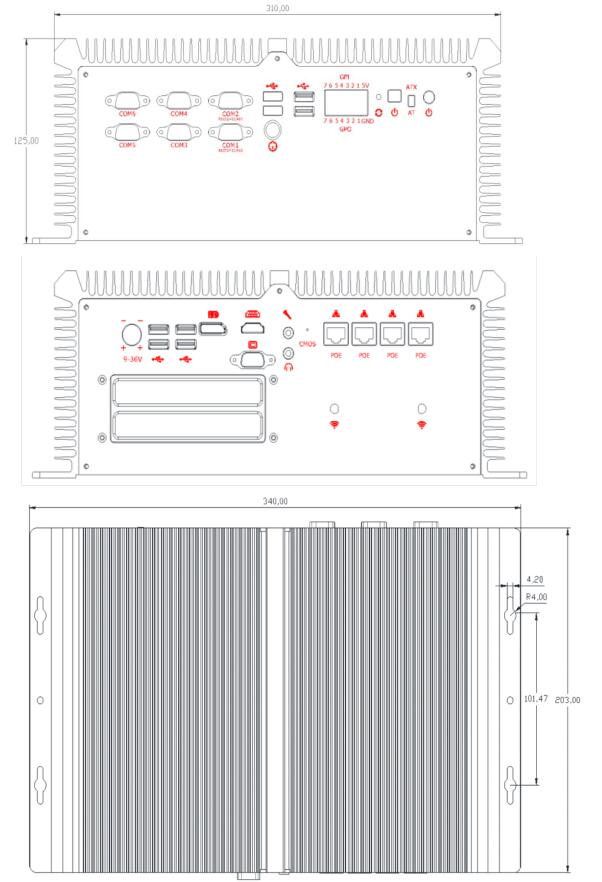

Dimension Drawing
