Product Specification

System:

Processor: Intel's 4/5/6/7/8/10 Core i3/i5/i7 CPU is optional

System memory: 4/5 generation ----------DDR3L SODI MM x1, Max. 8GB memory

6/7/8/10 ----DDR4 SODI MM x2, up to 32GB RAM

Network: 2 x Intel i211, 2 x Intel i255V

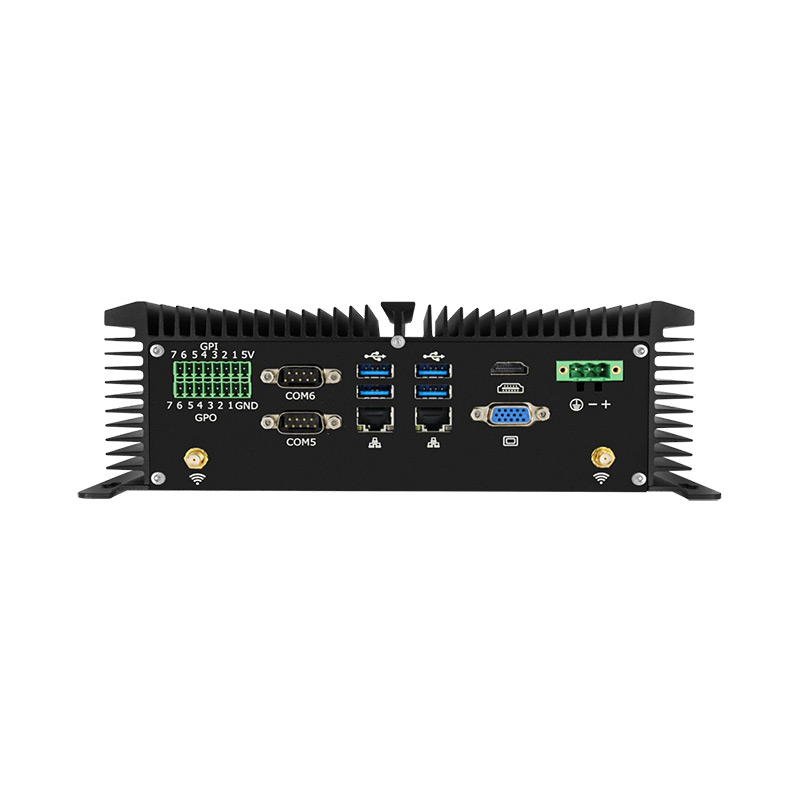

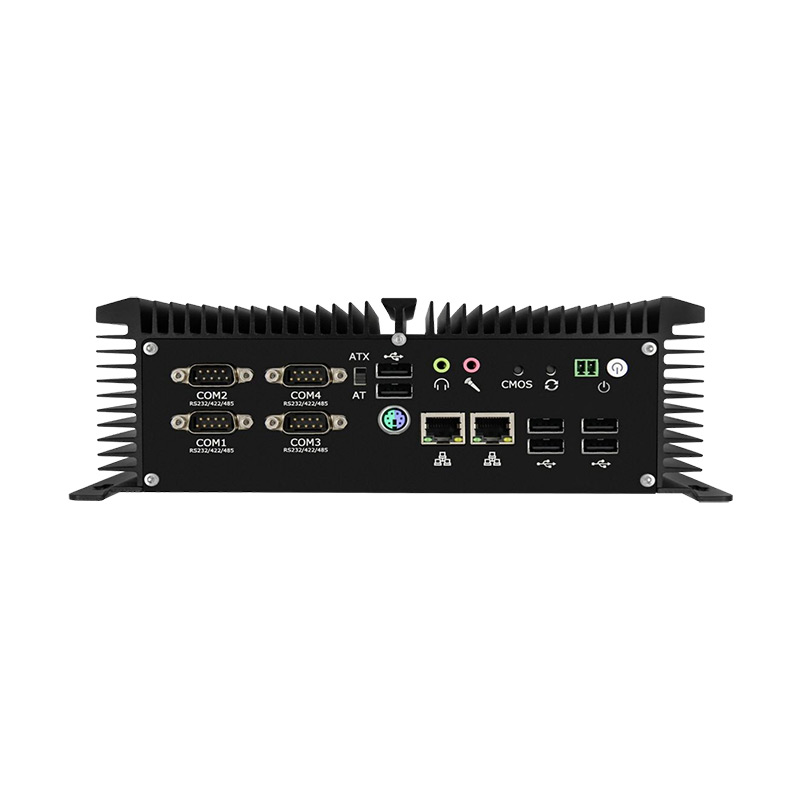

I/O interface:

4 x USB3.0, 6 x USB2.0

6 x COM (4 of which support RS485/RS422)

1 x HDMI, 1 x VGA

1 x PS2 (keyboard and mouse in one)

14 x GPIO (7 inputs, 7 outputs)

1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button

1 x 3pin Phoenix terminal power base, support 9-36V power input

1 x headphone jack, 1 x microphone

1 x DIP switch, supporting ATX/AT boot mode selection

2 x antenna interface for Wi-Fi /3G/4G

Storage: 1x MSATA

1x M.2 NVME 2280 (supported by the 6/7/8/10 generation) 1x HDD/SSD

Expansion slot: Mini-PCIe x 1 1/2 card, supporting Wi-Fi Bluetooth

Mini-PCIe x 1 Full card (with SIM card), support 3G/4G module, Wi-Fi Bluetooth

System support: Windows? 10, WES 7/10, LINUX

Other: Support watchdog, one key restore, diskless startup

Power Supply:

Power input: 9-36V

Structure:

Material: Aluminum

Installation mode: Supports desktop and wall mount

Dimensions: 248 x 150 x 83 mm

Weight: 1.3 Kg

Working environment:

Storage temperature: -30℃ to +70℃

Operating temperature: -20℃ to +60℃

Storage humidity: 10%~90% @30℃, no condensation

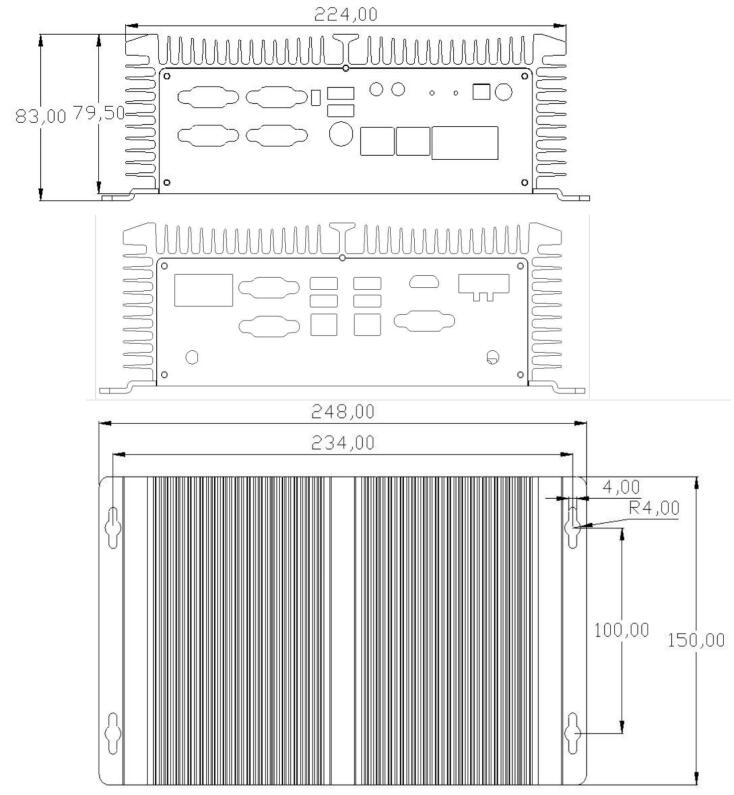

Dimension Drawing
