Product Specification

System:

Processor: Intel? J1900, 4/6/7/8 Core i3/i5/i7 CPU is optional

System memory: DDR3L SODIMM x1, supports up to 16GB

Network: 6 x GbE RJ45 Intel i211/i210

I/O interface:

4 x USB

1 x RJ45 COM(Cisco standard)

1 x DB9 COM

1 x HDMI

1 x Power LED, 1 x HDD LED

1 x Power Button, 1 x Reset Button

1 x Power input

1 x SIM card slot

2 x antenna interface for WIFI/3G/4G

Storage: 1x MSATA

1x HDD/SSD

Expansion slot: Mini-PCIe x 1 full card, onboard SIM card slot, support 3G/4G module, WIFI Bluetooth

System support: Windows? 7/8/10, WES 7/10, LINUX

Other: Support open door dog, one key restore, no disk start

Power Supply:

Power input: 12V

Structure:

Material: Aluminum

Installation mode: Supports desktop and wall mount

Dimensions: 209 x 150 x 57 mm

Weight: 1.35Kg

Working environment:

Storage temperature: -30℃ to +70℃ :

Operating temperature: -20℃ to +60℃ :

Storage humidity: 10%~90% @30℃, no condensation

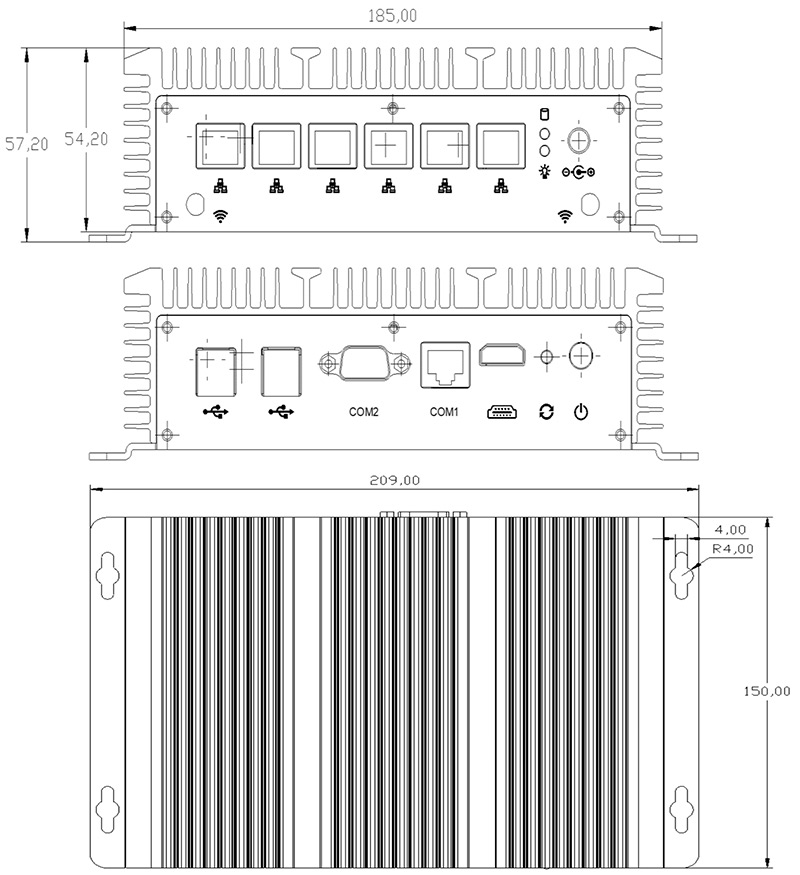

Dimension Drawing
