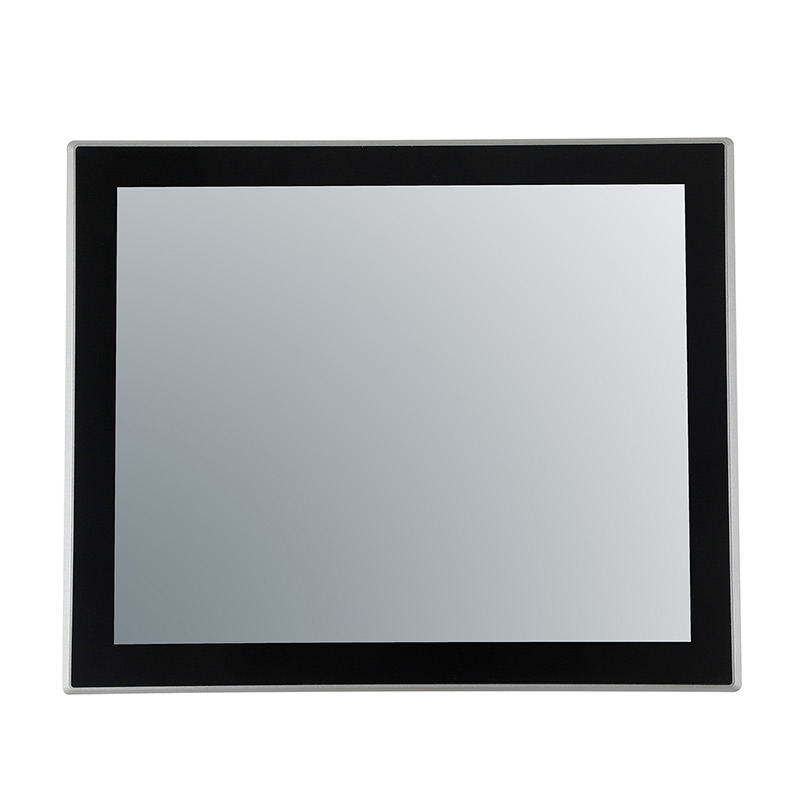

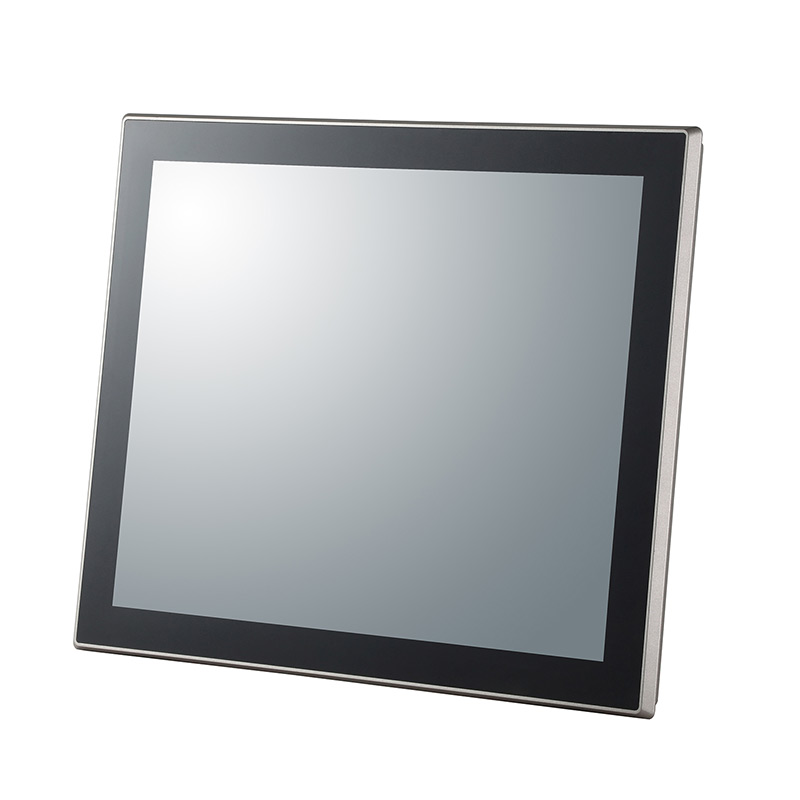

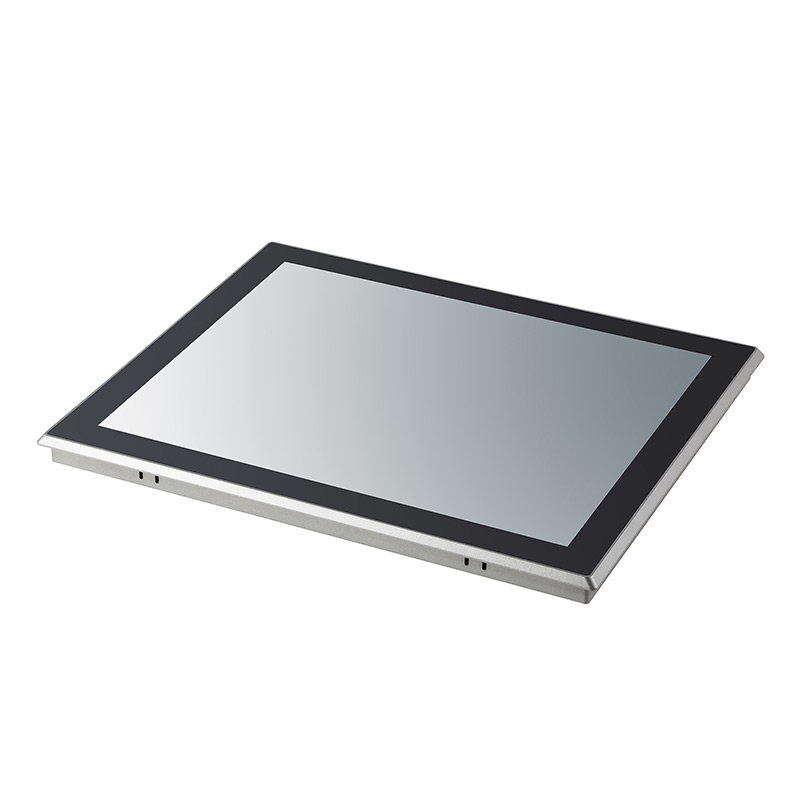

17 Inch industrial tablet

Performance

Product Specification

System:

Name: BST-1701B

Processor: lntel small Core J4125/J6412/N100/N150 lntel large core 8/10/11/12/13 generation Core i5/i7

System memory: J4125/J6412: DDR4 SODI MM *1 N100/N150: DDR5 SODI MM *1 8/10/11: DDR4 SODI MM *2 12/13: DDR5 SODI MM *2

Network:

2 x 2.5Gbe RJ45 Intel i225V/i226V (Expandable with four ports)

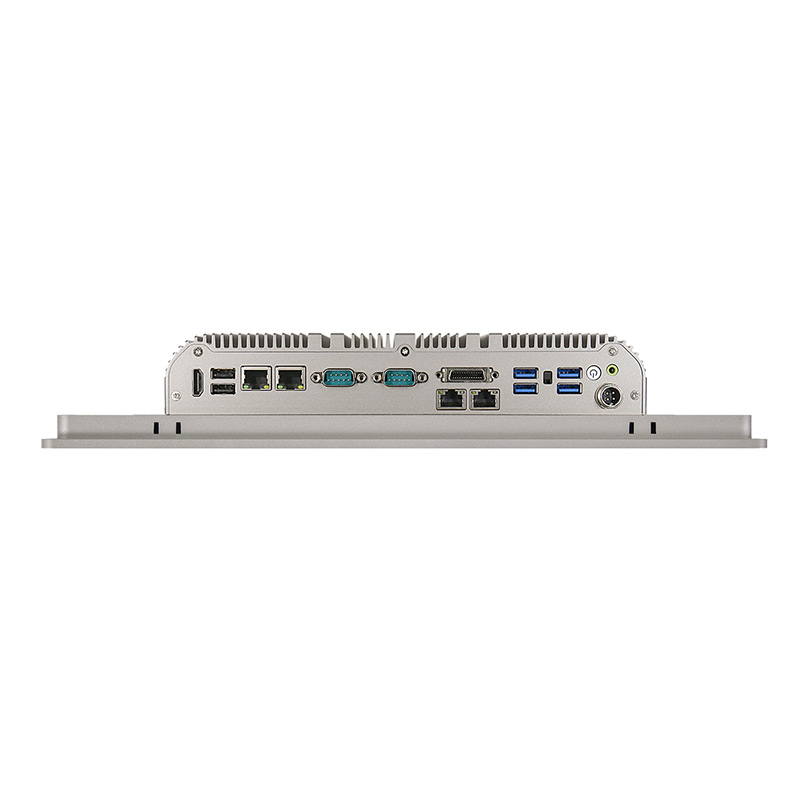

I/O interface: 2 * USB3.0, 4 * USB2.0 (J4125/J6412/N100/N150/11 generation)

4 * USB3.0, 2 * USB2.0 (8/10/12/13 generation)

2 * DB9 COM1&COM2, RS-232/422/485

1 * HDMI

1 * Power Button

1 * 4P power socket

1 * Audio Line-out

1 * AT/ATX DIP switch

1 * Expansion IO: Integrated 4-channel 3-wire COM, 10-channel GPIO, 1 remote switch

5 * antenna interface for Wi-Fi /BT/3G/4G/5G

Storage: 1 * M.2 2242/2260/2280 SATA

1 x 2.5 inch HDD/SSD

1 * M.2 2280 NVME

Expansion slot: M.2 3042/3052 3G/4G/5G module, onboard SIM card slot M.2 2230 Wi-Fi Bluetooth

System support: Windows, Linux

Other: Support watchdog, diskless startup

Power Supply:

Power input: DC 9 ~ 36V 4Pin navigator

Structure:

Material: Aluminum

Installation method: VESA 75/100 panel installation

Size: 400.66 * 329.76 * 68.10 mm

Weight: TBD

Use environment:

Operating temperature: -20°C ~ 60°C

Storage temperature: -30°C to 70°C

Storage humidity: 10 ~ 90% @30°C, no condensation

Display screen:

LCD type: 17.0" TFT-LCD

Resolution: 1280 * 1024

Maximum color: 16.2M

Brightness: 250 cd/m2

Viewing Angle (CR> =10) : -85 ~ 85 ° (H), -85 ~ 85 ° (V)

Backlight: LED

Backlight life (hours) : 30000

Touch screen:

Type: 5-wire resistor Style: Projection capacitor

Transmittance: 78% : >85%

Service life: 250g 10 million clicks: >50 million times

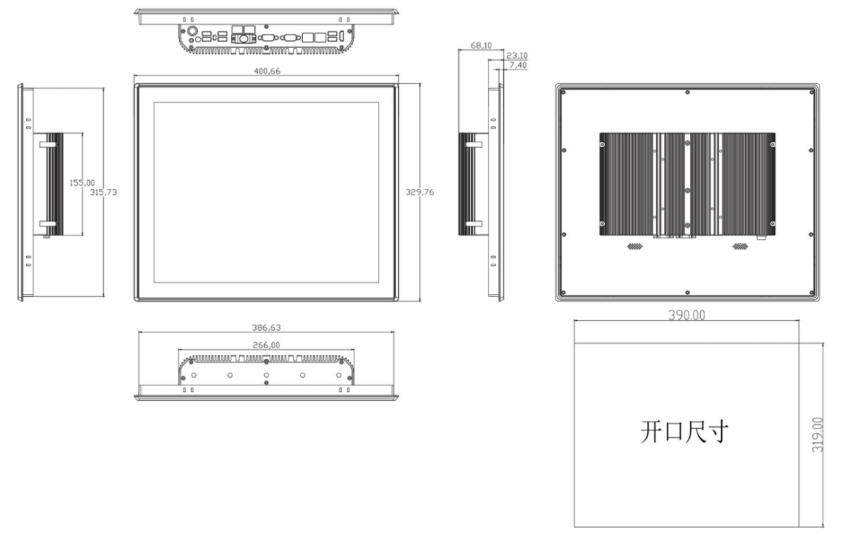

Dimension Drawing

Ordering Information

物料编码	描述
BST-1701B-J4125	17.0” TFT LCD \| J4125 CPU\| DDR4 SODI MM 1\| 2USB3.0,4* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-J6412	17.0” TFT LCD \| J6412 CPU\| DDR4 SODI MM 1\| 2USB3.0,4* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-N100	17.0” TFT LCD \| N100 CPU\| DDR5 SODI MM 1\| 2USB3.0,4* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-N150	17.0” TFT LCD \| N150 CPU\| DDR5 SODI MM 1\| 2USB3.0,4* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I5-8365U	17.0” TFT LCD \| i5-8365U CPU\| DDR4 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I7-8560U	17.0” TFT LCD \| i7-8560U CPU\| DDR4 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I5-10310U	17.0” TFT LCD \| i5-10310U CPU\| DDR4 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I7-10510U	17.0” TFT LCD \| i7-10510U CPU\| DDR4 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I5-1135G7	17.0” TFT LCD \| i5-1135G7 CPU\| DDR4 SODI MM 2\| 2USB3.0,4* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I7-1165G7	17.0” TFT LCD \| i7-1165G7 CPU\| DDR4 SODI MM 2\| 2USB3.0,4* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I5-1235U	17.0” TFT LCD \| i5-1235U CPU\| DDR5 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I7-1255U	17.0” TFT LCD \| i7-1255U CPU\| DDR5 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I5-1335U	17.0” TFT LCD \| i5-1335U CPU\| DDR5 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
BST-1701B-I7-1355U	17.0” TFT LCD \| i7-1355U CPU\| DDR5 SODI MM 2\| 4USB3.0,2* USB2.0 \| 2* LAN \| 6 * COM \|1*Power Adapter
