Specifications

System

• Processor: Optional Intel 4th/5th/6th/7th/8th/10th Gen Core i3/i5/i7 CPU

• System Memory:

• For 4th/5th Gen: DDR3L SODIMM ×1, max 8GB memory

• For 6th/7th/8th/10th Gen: DDR4 SODIMM ×2, max 32GB memory

• Network: 2 x GbE RJ45 Intel i211/i210

I/O Interfaces

• 4 x USB3.0, 2 x USB2.0

• 6 x DB9 COM (4 of which support RS485/RS422)

• 1 x HDMI, 1 x VGA

• 1 x PS2 (Keyboard & Mouse Combo)

• 14 x GPIO (7 Inputs, 7 Outputs)

• 1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button

• 1 x 3-pin Phoenix Terminal Power Connector, supports 9-36V power input

• 1 x Headphone Jack, 1 x Microphone Jack

• 1 x DIP Switch, supports ATX/AT Power - on Mode Selection

• 2 x Antenna Interfaces, for WiFi/3G/4G

Storage

• 1 x mSATA

• 1 x M.2 NVME 2280 (supported by 6th/7th/8th/10th Gen)

• 1 x HDD/SSD

Expansion Slots

• Mini - PCIe ×1 Half - size, supports WiFi & Bluetooth

• Mini - PCIe ×1 Full - size (with SIM Card Slot), supports 3G/4G Modules, WiFi & Bluetooth

• Expansion IO ×1, supports LPC, USB, PCIE

System Support

• Windows® 7/8/10, WES 7/10, LINUX

Others

• Supports Watchdog, One - key Restore, Diskless Boot

Power Supply

• Power Input: 9 - 36V

Structure

• Material: Aluminum

• Installation Method: Supports Desktop and Wall - mount Installation

• Dimensions: 249 x 150 x 86 mm

• Weight: 2.2 Kg

Operating Environment

• Storage Temperature: - 30°C to + 70°C

• Operating Temperature: - 20°C to + 60°C

• Storage Humidity: 10% - 90% @ 30°C, Non - condensing

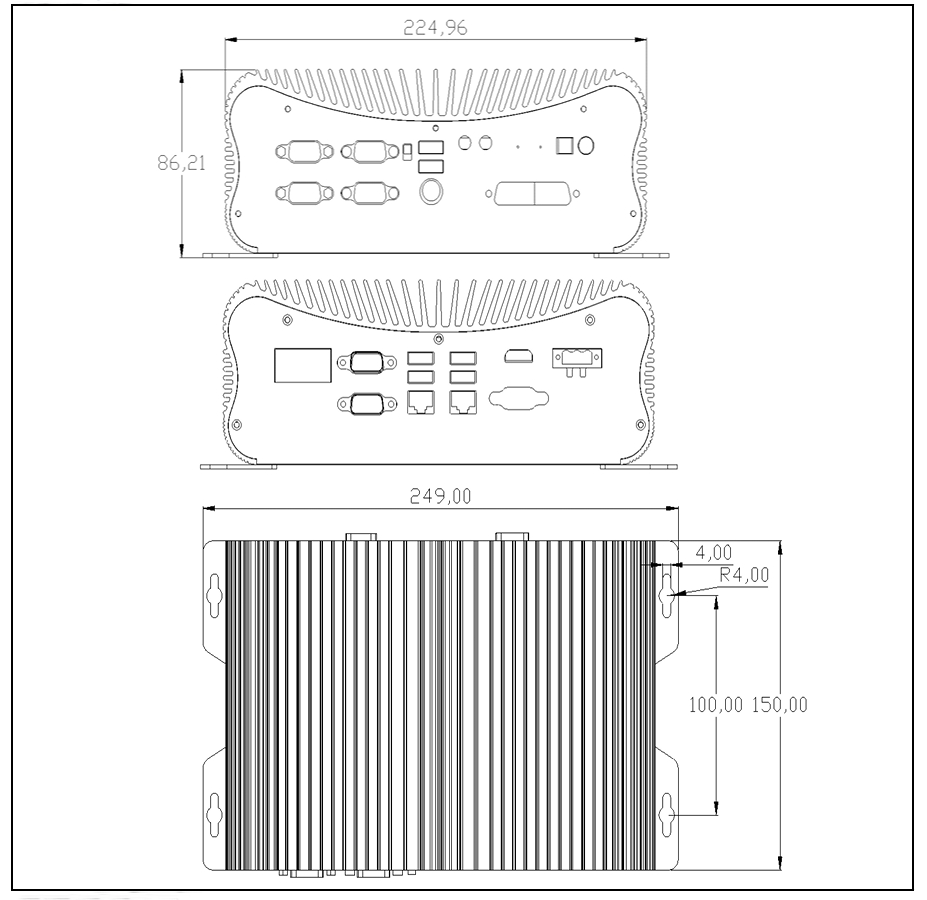

Product size
